    SolveigMM MKV Muxer filter

    The MKV/WEBM muxer filter implemented as a DirectShow filter. It's purpouse is to multiplex input video/audo/subtitles into Matroska or WEB Matroska containers.

    Filter Interfaces IBaseFilter, IFileSinkFilter, IModuleConfig, IAMFilterMiscFlags, ISpecifyPropertyPages
    Input Pin Media Types MEDIATYPE_Video, MEDIASUBTYPE_NULL
    MEDIATYPE_Audio, MEDIASUBTYPE_NULL
    Input Pin Interfaces IPin, IMemInputPin
    Output Pin Media Types MEDIATYPE_Stream, MEDIASUBTYPE_NULL
    Output Pin Interfaces IPin, IMemInputPin
    Filter CLSID CLSID_SMM_MKV_MUXER
    Property Page CLSID Properties - {31741855-F982-40c0-A456-4C8BD7D132A7},
    About - {222F030C-2F18-48e8-A8A1-D72FE1C89513}
    Executable SMM_MKVMuxer.ax
    Merit MERIT_DO_NOT_USE
    Filter Category CLSID_LegacyAmFilterCategory
    Declared in PropID_MatroskaMuxer.h

    Features

    The filter supports MKV and WEBM as an output formats.

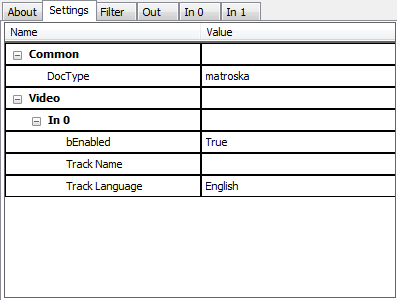

    The filter's property page is a table shown on fig. 1. It includes the following control elements:

    • DocType - output stream type (matroska or webm).
    • A set of properties for each input stream(including Track's name and language and also enabling/disabling current track).

    SolveigMM MKV Muxer filter

    Usage

    NOTE: All changes must be applied (using either APPLY button in Graph Editor or Apply method of IPropertyPage interface) to take place, the default values are used otherwise.

    To use the filter manually:

    • Add filter to a graph.
    • Build the graph.
    • Set desired properties for each input streams and the type of output stream.
    • Run the graph.

    To use programmatically not using property page:

    The following section describes the Parameter GUIDs declared in the PropID_MatroskaMuxer.h header file to be used for tuning the SolveigMM Matroska Muxer Filter by means of the IModuleConfig interface.

    The following table provides an overview of the Parameter GUIDs of SolveigMM Matroska Muxer DirectShow Filter:

    Parameter GUID Value type Description
    SMMKVM_MUXTIME VT_I8 Reads the current muxing time
    SMMKVM_TRACKSCOUNT VT_I2 Reads a number of input streams.
    SMMKV_DOCTYPE VT_I4 Specifies an output stream type.
    SMMKVM_TRACKPROPS VT_BYREF | VT_UI1 Sets tracks properties.

    SMMKVM_MUXTIME

    GUID:

    {08AE82FB-A9CB-442c-A087-9C59FD2D7E07}

    Description:

    Used to retrieve current muxing time.

    Type:

    VT_I8 (llVal)


    SMMKVM_TRACKSCOUNT

    GUID:

    {5A217E85-4359-4834-8B2A-F50A205C0E42}

    Description:

    Used to get the number of input streams.

    Type:

    in - VT_I2 (iVal)


    SMMKV_DOCTYPE

    GUID:

    {90B2F4C2-0B5F-4834-92A9-8AC9F086E681}

    Description:

    Sets the type of output stream. A value of SMMKV_DOCTYPE_ENUM type.

    Type:

    VT_I4 (lVal)

    SMMKV_DOCTYPE_ENUM Enumeration

       enum SMMKV_DOCTYPE_ENUM
       {
          SMMKV_DOCTYPE_MATROSKA = 0,
          SMMKV_DOCTYPE_WEBM = 1,
          SMMKV_DOCTYPE_SIZE = 2
       }


    Elements:

    SMMKV_DOCTYPE_MATROSKA

    Stream type is Matroska.

    SMMKV_DOCTYPE_WEBM

    Stream type is WEB Matroska.

    SMMKV_DOCTYPE_SIZE

    Elements number.


    SMMKVM_TRACKPROPS

    GUID:

    {CB2C2D6F-D2F5-49e3-A1B7-F947833DA2CD}

    Description:

    Used to set the desired tracks properties. Pointer to a TRACK_PROPS structure is used as a parameter.

    Type:

    VT_BYREF | VT_UI1 (pbVal)

    TRACK_PROPS Structure

       struct TrackProps {
          int     number;
          bool    bEnable;
          bool    bDefault;
          bool    bForced;
          BSTR    language;
          BSTR    name;
          int     track_type;
        } TRACK_PROPS;


    Members:

    number

    Track's number.

    bEnable

    Is this track enabled.

    bDefault

    Is this a default track.

    bForced

    Is this a forced track.

    language

    Track's language.

    name

    Track's name.

    track_type

    Track's type (read-only value).
