    Interface

    The user interface of the Video Splitter consist of five main parts: Menu bar, Navigation controls, Information window, Splitter controls and Preview window.

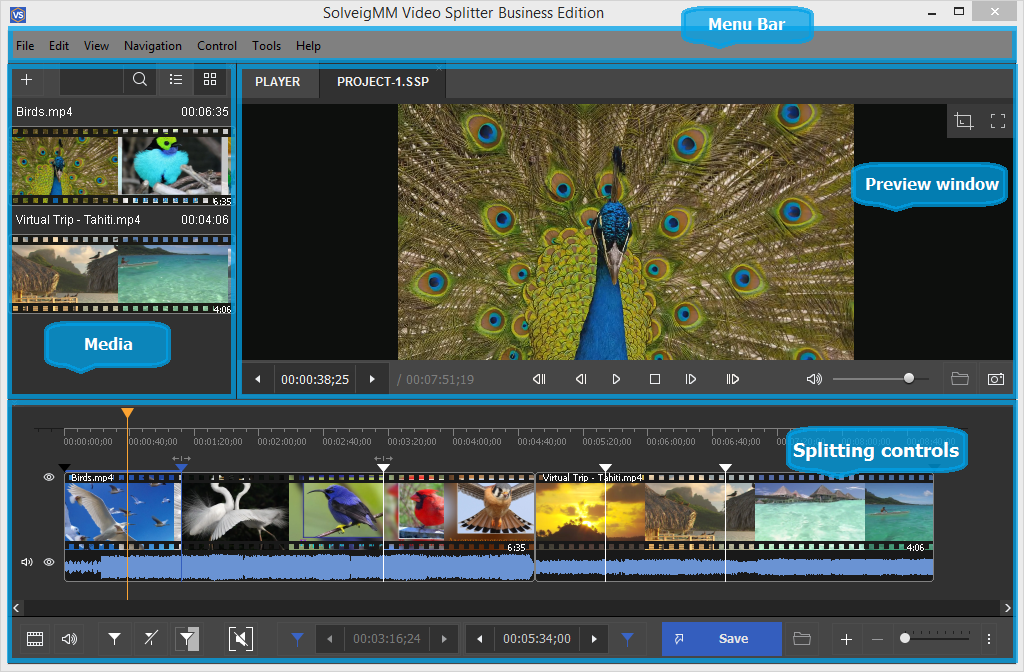

    Video Splitter main window:

    Video Splitter main window

    In this section:

    • Menu bar
    • Stream selection window
    • Navigation controls
    • Preview controls
    • Media panel
    • Splitting controls

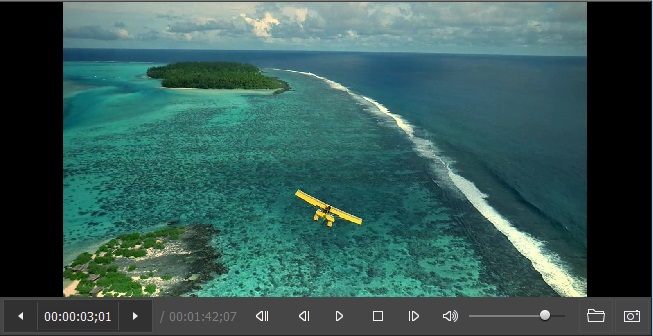

    • Preview window

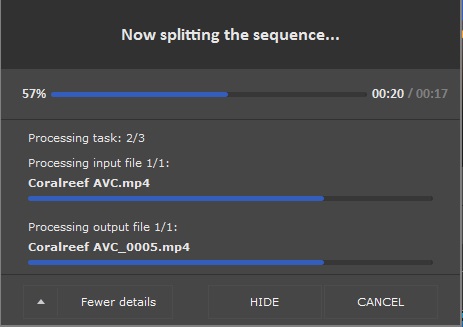

    • Progress window
    • Splitter in system tray
    • Filters info window
    • Batch manager
    • Join manager
    • Slicing window

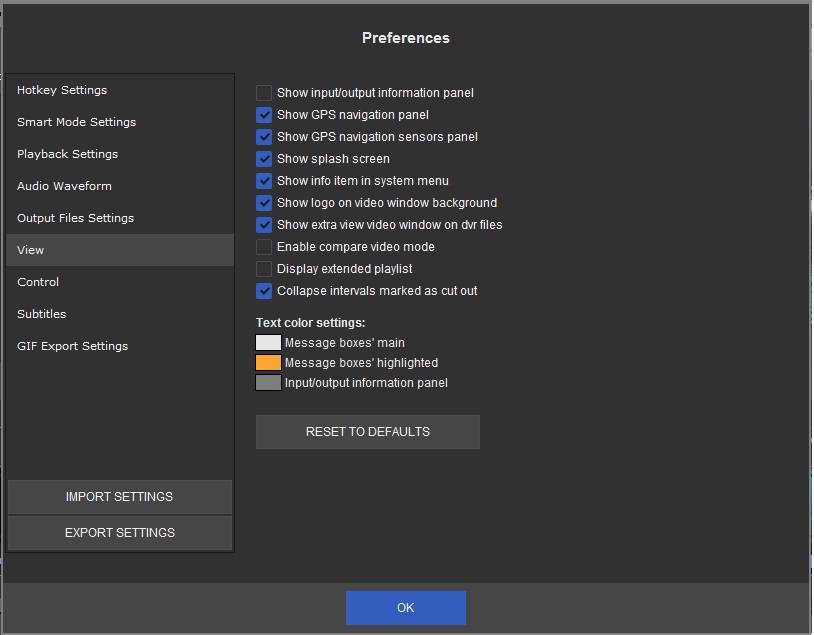

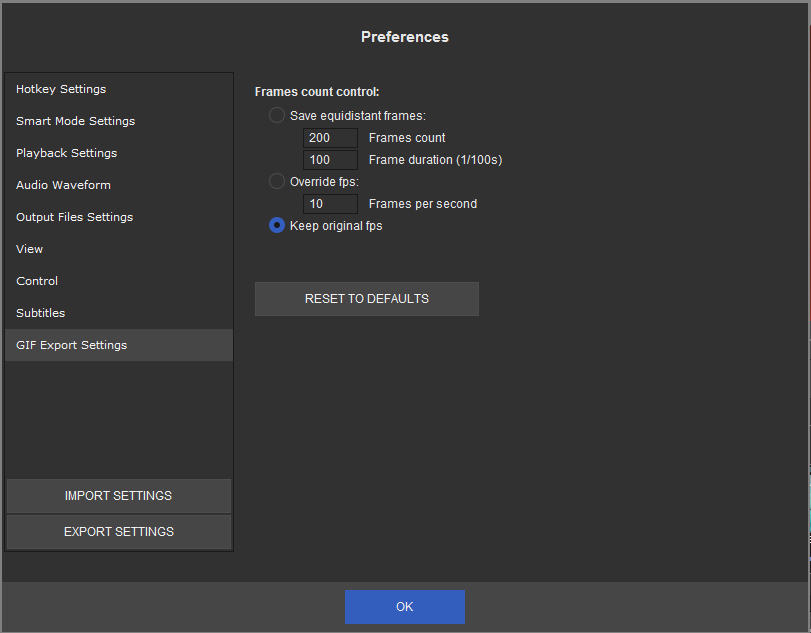

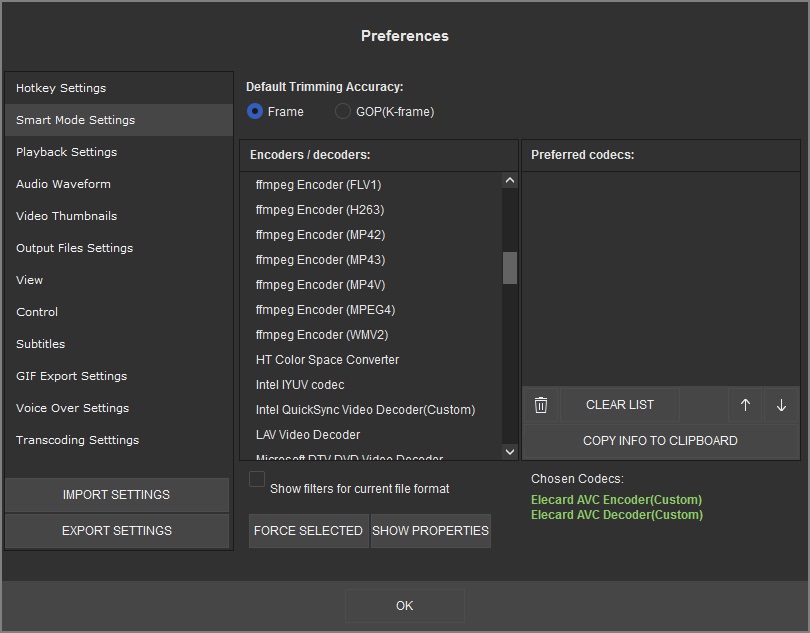

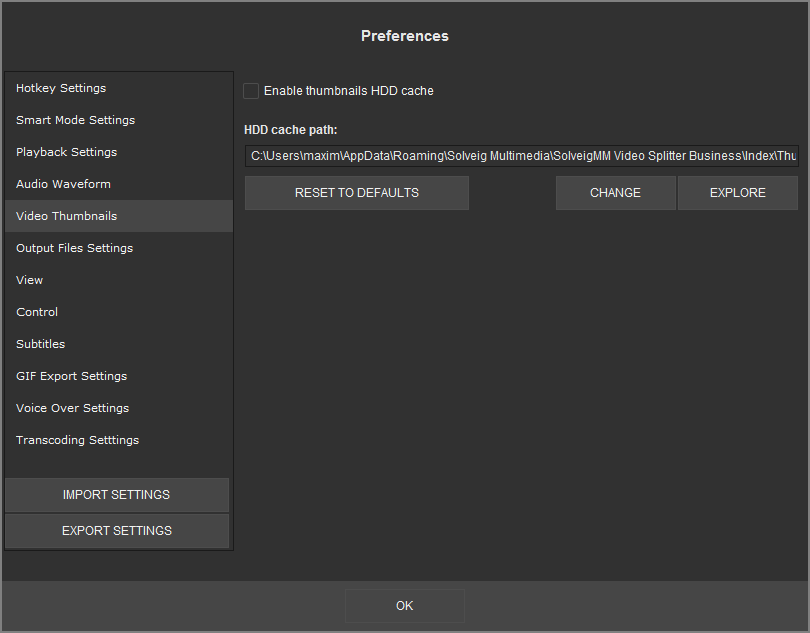

    • Preferences window

    Menu bar

    You can use commands in the menu bar to perform tasks in the Video Splitter. These commands are described in this document.

    Menu bar

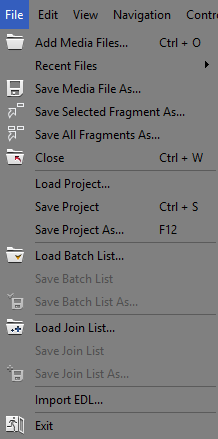

    File menu

    File menu

    Menu item Description Shortcut key
    Add Media Files... Select a supported media file to be opened and edited (*) Ctrl + O
    Save Media File As... Specify the output file name and immediately save it (start the trimming process) (*)
    Save Selected Fragment As... Specify the output file name and immediately save it (start the trimming process) (*)
    Save All Fragments As... Specify the output file name and immediately save all fragments (start the trimming process) (*)
    Close Close the input and output files Ctrl + W
    Load project... Open a Video Splitter project file
    Save project Save the project file Ctrl + S
    Save project As... Save the project file to the specified folder F12
    Load Batch List... Load a task list to the Batch Manager
    Save Batch List Save the batch list
    Save Batch List As... Save the batch list to the specified folder
    Load Join List... Load a join list to the Join Manager
    Save Join List Save the join list
    Save Join List As... Save the join list to the specified folder
    Recent Files... Open recently edited files
    Import EDL... Load a project in EDL format
    Exit Close the program

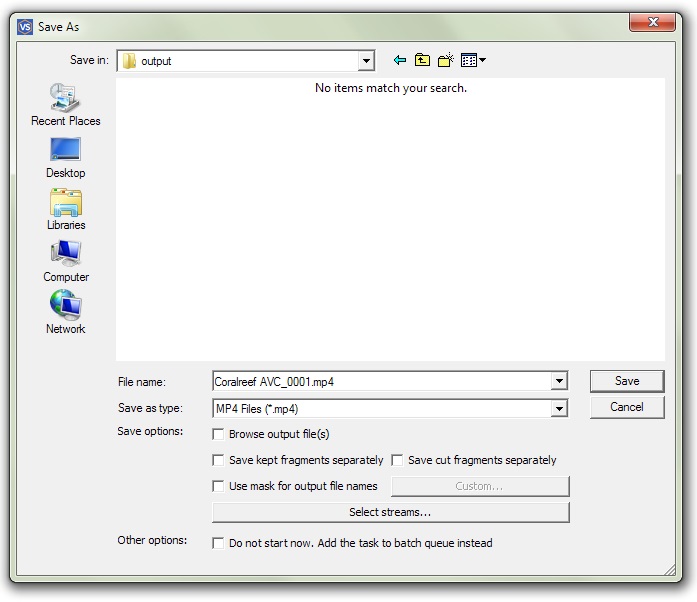

    "Save As" dialog

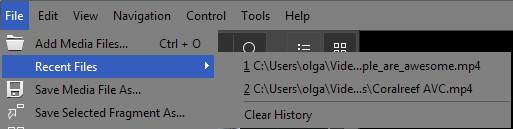

    File menu -> Recent Files

    Recent Files submenu

    Menu item Description
    Clear History Allows to clear history of recent files

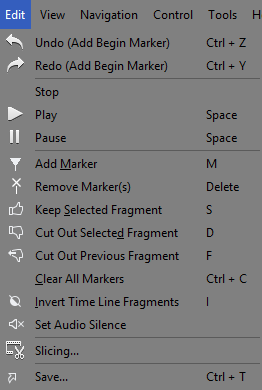

    Edit menu

    Edit menu

    Menu item Description Shortcut key
    Undo (Add Marker) Undo the action Ctrl + Z
    Redo Redo the action Ctrl + Y
    Stop Stop playback
    Play Start playback Space
    Pause Pause playback Space
    Add Marker Add a marker M
    Remove Marker(s) Remove the selected marker or markers (*) Delete
    Keep Selected Fragment Keep the selected fragment (*) S
    Cut Out Selected Fragment Cut the selected fragment (*) D
    Cut Out Previous Fragment Cut out the previous fragment (*) F
    Clear All Markers Remove all markers Ctrl + C
    Invert Time Line Fragment Invert all timeline fragments on the slider (*) I
    Start trimming Start the trimming process (*) Ctrl + T

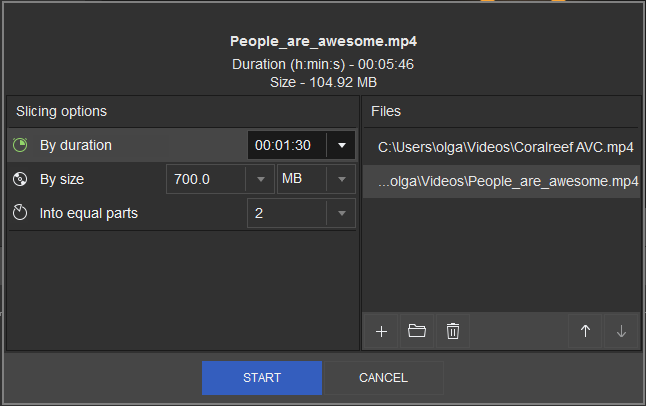

    Slicing... Opens slicing window
    Set audio silence Allows to mute sound of the selected fragment

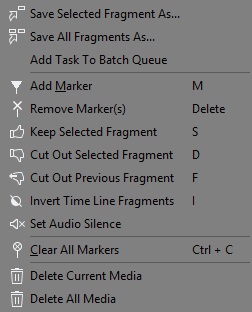

    (*) - These operations are available from the menu and from the context menu. For details, see Navigation controls, Splitting controls

    View menu

    View menu

    Menu item Description Shortcut key
    Time format Opens the submenu -
    Zoom Opens the submenu -
    Languages Opens the interface language submenu -
    Panels Opens the submenu -
    Maps Opens the submenu -
    Show frames thumbnails Allows to show or hide frames thumbnails -
    Show UHD HEVC warning Allows to show or hide the informationd dialog when you work with UHD HEVC in 32 bit Video Splitter -
    Show time format switch warnings Allows to turn off or turn on format switch warnings -
    Show audio waveform Allows to show or hide audio waveform -

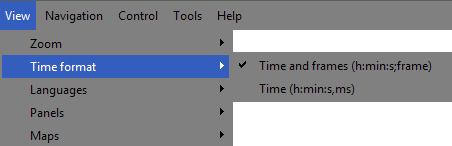

    View menu -> Time format

    Time Format submenu

    Menu item Description Shortcut key
    Times and frames Allows to show timeline in HH:MM:SS;frames format -
    Time Allows to show timeline in HH:MM:SS;ms format -

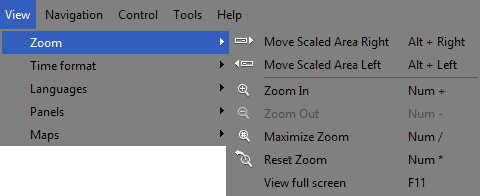

    View menu -> Zoom

    Zoom submenu

    Menu item Description Shortcut key
    Move Scaled Area Right Move the zooming scrollbar right Alt + →
    Move Scaled Area Left Move the zooming scrollbar left Alt + ←
    Zoom In Zoom in the timeline slider NumPad +
    Zoom Out Zoom out the timeline slider NumPad -
    Maximize Zoom Set the max scale rate NumPad /
    Reset Zoom Reset the scale rate to 1 (initial scale) NumPad *
    View full screen Enables full screen mode F11

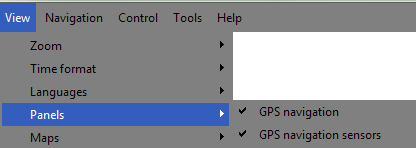

    View menu ->Panels

    Panels submenu

    Menu item Description
    GPS navigation Shows GPS information ( when the file contains this type of information )
    GPS navigation sensors Shows GPS navigation sensors: speedometer, compass and accelerometer ( when the file contains this type of information )

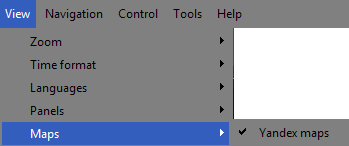

    View menu -> Maps

    Maps submenu

    Menu item Description
    Yandex maps Displays route on the Yandex maps (if file contains such information)

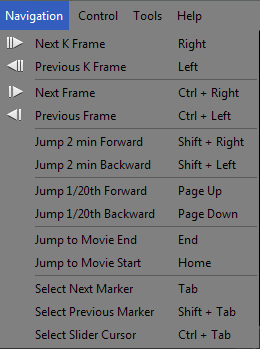

    Navigation menu

    Navigation menu

    Menu item Description Shortcut key
    Next K Frame Go to the next K Frame →
    Previous K Frame Go to the previous K Frame ←
    Next Frame Go to the next Frame Ctrl + →
    Previous Frame Go to the previous Frame Ctrl + ←
    Jump Forward To 2 min. Jump forward, the time step is adjustable. Default value - 2 min. Shift + →
    Jump Backward To 2min. Jump backward, the time step is adjustable. Default value - 2 min. Shift + ←
    Jump 1/20th Forward Jump 1/20th of movie length forward Page Up
    Jump 1/20th Backward Jump 1/20th of the movie length backward Page Down
    Jump to Movie End Jump to the movie end Home
    Jump to Movie Start Jump to the movie start End
    Select Next Marker Select the next marker Tab
    Select Previous Marker Select the previous marker Shift + Tab
    Select Slider Cursor Select the slider cursor Ctrl + Tab

    Control menu

    Control menu

    Menu item Description
    Frame Accuracy (Smart Mode) Enable the frame accurate trimming mode, otherwise K-frame (or GOP) accuracy is enabled.
    Obey samples times Use an alternative synchronization algorithm. By default, it is disabled. If the resulting file is out of sync after trimming this option might improve audio/video synchronization.
    Ignore Trimming Errors Ignore trimming errors.

    Note: It is reccommended to keep it disabled by default.
    Slider K-Frame Positioning If this option is enabled, when you move the cursor it jumps to the nearest previous K Frame. This mode implements the What You See Is What You Get feature.
    If this option is disabled, you can navigate through all movie frames.
    Markers K-Frame Positioning If this option is enabled, when you move the marker it jumps to the nearest previous K Frame. This mode implements the What You See Is What You Get feature.
    If this option is disabled, you can set the marker at any movie frame.

    Notes: If this option is disabled but the Frame Accuacy is disabled or not supported for current file, the interval start in the trimmed file will start with the K Frame anyway. Interval end in most cases will be the same as the end marker position.
    Select streams... Opens the window for selecting video and audio streams for preview and trimming. For details, see Stream selection window

    Tools menu

    Tools menu

    Menu item Description
    Batch Manager Open the sumbenu of the Batch Manager item (available for Business Edition only)
    Join Manager Open the Join Manager window
    Time Calculator Show the time calculator
    History List Open the history list of actions
    Index MPEG files in folder... Create index for MPEG files in the selected folder
    Index MPEG File Create index for the MPEG2 video file (*)
    Explore Folder Open Windows Exporer in the folder with the Input or Output media files
    Logging Open menu for actions with log files
    Show Preview filters Show the list of filters used for preview
    Preferences... Open preferences window
    Slicing... Open slicing window

    (*) - This operation is available for MPEG2 video only if the file has not been indexed yet.

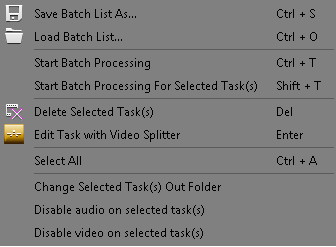

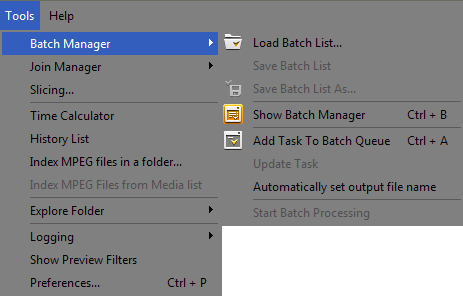

    Tools -> Batch Manager menu

    Note: This menu is available in Business Edition version only

    Batch Manager submenu

    Menu item Description Shortcut key
    Show Batch Manager Show the Batch Manager window Ctrl + B
    Load Task List... Select a supported batch file
    Save Task List Save the Task List containin trimming task descriptions to an *.xtl file.
    See the Task List syntax in Batch file format
    Save Task List As... Save the Task List containin trimming task descriptions to an *.xtl file to the specified folder.
    See the Task List syntax in Batch file format
    Add Task To Batch Queue Add the current task to the batch queue A
    Update task Update the selected task in the batch queue
    Automatically set output file name If enabled allows to set the name for the output file automatically
    Start Batch Processing Start the batch processing

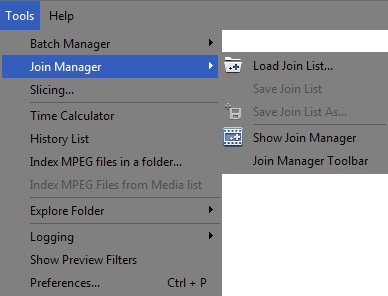

    Tools -> Join Manager menu

    Join Manager submenu

    Menu item Description
    Load Join List Load a joining task from a file
    Save Join List Save the current joining task to a file
    Save Join List As... Save the current joining task to a file to the specified folder

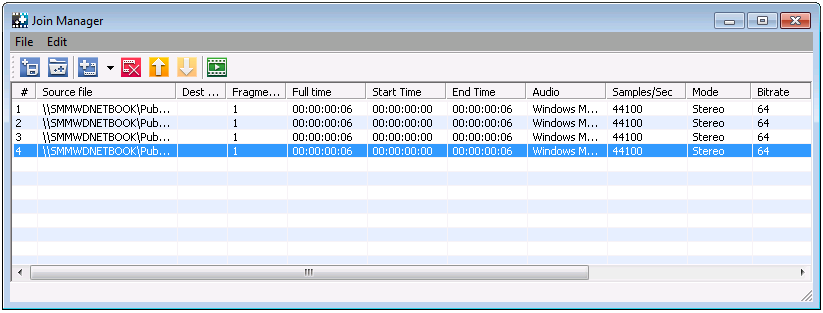

    Show Join Manager Show the Join manager main window
    Join Manager Tooolbar Show/hide the Join manager toolbar window

    Help menu

    Help menu

    Menu item Description Shortcut key
    Help topics... Open the help file F1
    Keyboard Shortcuts Shows the Keyboard Shortcuts section in the help file
    Register... Register the Video Splitter
    Ask for Support Open technical support section of the website
    Online Forum Open the Solveig Multimedia forum
    Open comparison table of SolveigMM products
    Online HowTo Open HowTo section of the website
    Product Comparison Open products comparison web page
    Check for updates Check if the latest Video Splitter version is installed
    About SolveigMM Video Splitter Open the About dialog box

    Stream selection window

    Stream selection window allows selecting streams for preview and editing. This window appears automatically when you open a file with multiple video or audio tracks. You can open this window from Control -> Select streams... menu or from "Select streams..." button of the Save As dialog.

    Select Streams in menu

    "Save As" dialog

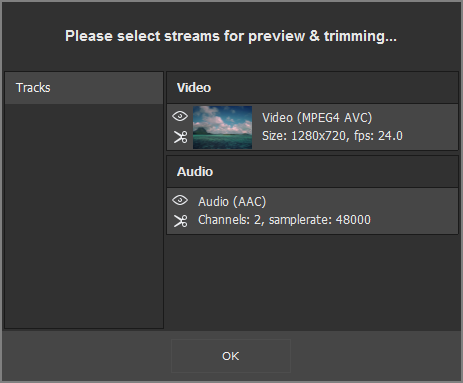

    Stream selection window looks as follows.

    Stream Selection dialog

    To preview the desired video or audio stream in Video Splitter please click the icon with an eye (Toggle stream preview) near this stream.

    To save the stream in the resulted output video file please click the icon with scissors (Toggle stream editing) near this stream.

    Item of Window Description Shortcut key
    Preview enabled indicator The stream is selected for preview -
    Editing enabled indicator The stream is selected for editing. It will be saved in the output file. -
    Preview disabled indicator The stream is not selected for preview -
    Editing enabled indicator The stream is not selected for editing. It will not be saved in the output file. -

    Navigation controls

    Navigation controls are designed for navigation through an open source media file. Using these controls, you can start and stop playback, pause it or search for the necessary position forward and backward. Also, the current position and total duration are displayed.

    Navigation controls

    Window item Description Shortcut key
    Previous K-Frame button Previous K Frame ←
    Next K-Frame button Next K Frame →
    Play button Play/Pause Space
    Pause button Pause
    Stop button Stop
    Previous Frame button Previous Frame Ctrl + ←
    Next Frame button Next Frame Ctrl + →
    Cursor position Slider cursor time position. You can edit this value manually
    Total file duration Total file length

    Preview controls

    Preview controls include a preview window transformation operations.

    Preview controls

    Window item Description Shortcut key
    Fullscreen button Switches Video Splitter to full screen mode
    Transformations list button Opens a transformation popup menu (*)
    Rotate left button Rotate preview frame counterclockwise
    Rotate right button Rotate preview frame clockwise
    Flip horizontally button Flip preview frame horizontally

    (*) - Transformations available only with EVR video renderer. Transformations applied only to the preview window, output file do not obtain user-specified transformations.


    Media panel

    Media panel allows adding the multiple files of the same format. Simply drag-and-drop file to the "Media" panel or click it anywhere to open the dialog and add files. You could also click the (Add File button) button to open the new media file.

    We would like to draw your attention to the fact that files should be of the same file format and video/audio parameters to be added to the media list.

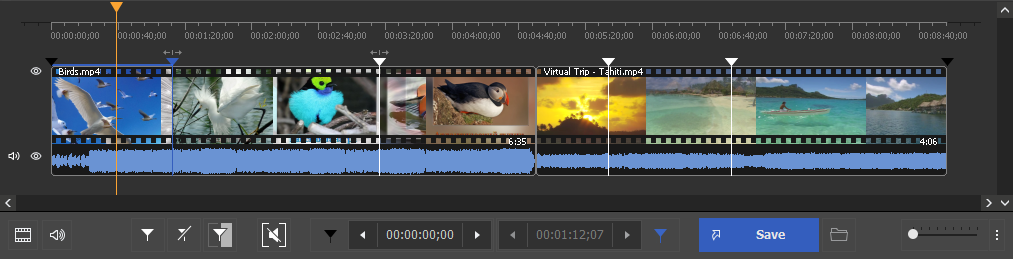

    Files could be dragged to the multi-timeline for editing.

    For your convenience there are two possible views of files in the list. By default the "Extended view" (Media library extended view button) is used.

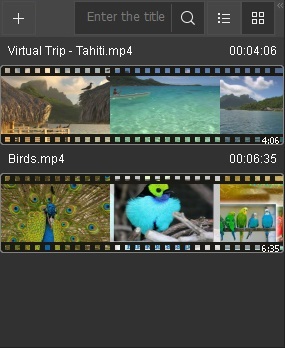

    Media library extended window

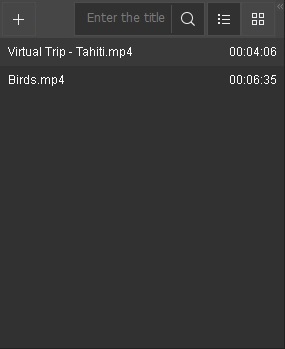

    There is also possibility to set "Simple" view (Media library simple view button) as shown below.

    Media library simple window

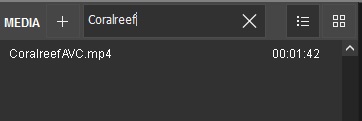

    If you have numerous files in the list, you can search appropriate by using special serch string.

    Media library search


    Splitting controls

    Splitting controls are the heart of the Video Splitter. Using this controls, you can manage intervals that will or will not be saved in the final movie.

    You can set intervals to be cut or kept, invert or completely delete fragments from your movie. Finally, the main button that starts the splitting process is located on this panel.

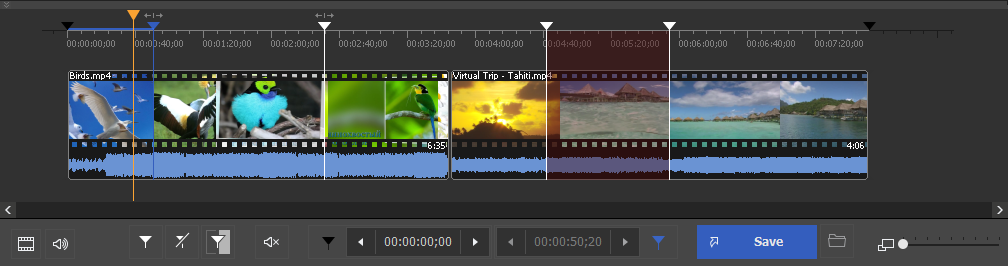

    Splitting controls

    Window Item Description Shortcut key
    Add Marker button Add Marker: Add a new marker to the current slider cursor position. M
    Delete Marker button Delete Marker: Remove selected marker or markers. Delete
    Set Audio Silence button Set audio silence: allows to set audio silence for the selected interval
    Save button Start trimming or batch processing (if there are any tasks in the batch queue) Ctrl + T
    Browse Output File button Browse output file
    Left marker position time Left marker cursor time position. You can edit this value manually
    Right marker position time Right marker cursor time position. You can edit this value manually
    Zoom control Zoom: Increase or Decrease the slider timeline resolution to make editing neighbouring markers more comfortable (*) NumPad +

    NumPad -
    Zoom menu Displays zoom popup menu
    Invert Selection button Invert intervals selection
    Get and Browse Screenshot buttons Get screenshot: allows to make the screenshot of the chosen video frame

    Browse screenshot: allows to open folder with the created screenshot
    Mute Audio Track button Mute selected audio track. Muted track will not be present in either the preview or the output file.
    Minimize Selected Track buttons Minimize selected track on the timeline.
    Toggle storyboard button Story board Off/On: turn on/off the story board
    Toggle waveform button Audio waveform On/Off: turn off/on the audio waveform

    Sample intervals:

    Interval color Description
    Keep interval (selected) This interval is set to be kept. It will be present in the final movie.
    The blue color of markers means you can edit it (delete, set it to be kept, etc.)
    A: Cut interval (selected) B: Collapsed interval (selected) A: Deployed state of the cut out fragment.
    This fragment is set to be deleted. It will not be present in the final movie
    The blue color of markers means you can edit it (delete, set it to be kept, etc.).

    B: Collapsed state of the cut out fragment.
    Keep interval (unselected) This interval is set to be kept. It will be present in the final movie.
    The white color of markers means that this interval can not be edited.

    A: Cut interval (unselected)  B: Collapsed interval (unselected) A: Deployed state of the cut out fragment.
    This fragment is set to be deleted. It will not be present in the final movie.
    The white color of markers means that this fragment can not be edited.

    B: Collapsed state of the cut out fragment.

    To place several files on the multitimeline drag them to the right area of multitimeline after each file. View of Video Splitter with several files added on the multitimeline:

    Multitimeline example

    Notice: You can also paste the file from the MEDIA list to any time positions of already added file on the multitimeline.

    Slider context menu

    Slider context menu

    Menu item Description Shortcut key
    Save Selected Fragment As... Specify the output filename and immediately save the selected fragment (start the trimming process)
    Save All Fragments As... Specify the output filename and immediately save all fragments (start the trimming process)
    Add Task To Batch Queue Allows to add Task to Batch Queue
    Add Marker Add a new marker to the current slider cursor position M
    Remove Marker(s) Remove the current marker or fragment Delete
    Keep Selected Fragment Sets the type of the selected fragment to be kept S
    Cut Out Selected Fragment Set the type of the selected fragment to be cut out D
    Cut Out Previous Fragment Set the type of the previous fragment to be cut out F
    Invert Time Line Fragments Invert time line fragments I
    Set audio silence Allows to mute sound of the selected fragment
    Clear All Markers Remove all markers Ctrl + C
    Delete Current Video Allows to delete selected video or audio file from the multi-timeline

    Preview window

    The preview window is designed for easy navigation through media files and helps you put splitting markers as precisely as possible.

    Preview window


    Progress window

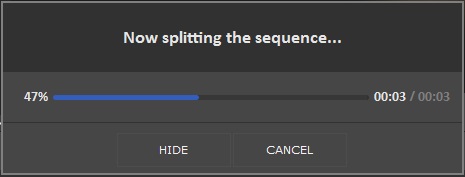

    The progress window indicates the current progress in percentage terms. You can cancel splitting by clicking the Cancel button or hide Splitter to the system tray by clicking the Hide button.

    General progress window

    The Batch Processing progress window is shown below:

    Batch progress window

    The upper progress bar shows the progess of the task being performed.
    The lower progress bar shows the progess of all the tasks in the batch queue.

    The Hide button hides Splitter to the system tray.
    When trimming is complete, the Splitter window appears.

    See also Splitter in system tray


    Splitter in system tray

    When you click the Hide button, Video Splitter is hiden to the system tray.

    Progress in tray

    The following context menu is available when Video Splitter is in the system tray:

    Tray menu

    Menu item Description
    Show Program Restore Video Splitter from the system tray
    Show Progress Show the current progress
    Exit Program Cancel the trim process and exit

    The following progress information will be shown if you click the Video Splitter system tray icon:

    One trimming task:

    General progress baloon in tray

    Batch processing:

    Batch progress baloon in tray

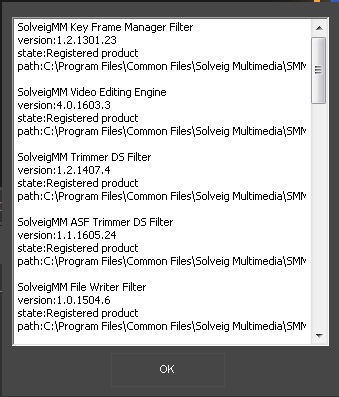

    Filters info window

    This window contains all the components necessary for Video Splitter to work properly.

    1. Click the icon of in the upper left corner of the window (You can use the Alt + Space shortcut)
    2. Click Info...

    Filters info window


    Batch Manager window

    The Batch Manager available only in Video Splitter Business Edition. For more information see destinction between Home Edition and Business Edition.

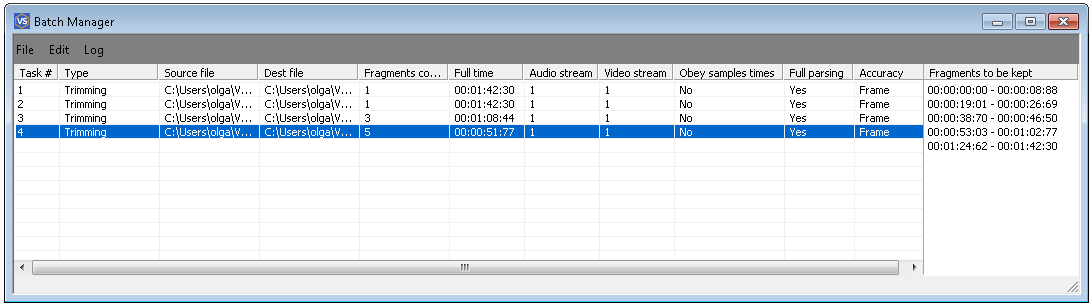

    Batch Manager window

    The Batch Manager window is used to edit the batch queue.

    Menu description:

    File menu

    Batch menu - File

    Menu item Description Shortcut key
    Load Task List... Load a saved batch queue from a file (*) -
    Save Task List Save the batch queue to a file -
    Save Task List As... Save the batch queue to a file to the specified folder -
    Open Task List in Notepad Open the batch queue in Notepad (*) -
    Hide Close this window -

    (*) - See Task List syntax in Batch file format

    Edit menu

    Batch menu - edit

    Menu Item Description Shortcut key
    Add Task To Batch Queue Add the current Video Splitter task to the batch queue Ctrl + A
    Update task Update the task in the batch queue according to the changes made in Video Splitter U
    Edit Task with Video Splitter Edit the selected task in the Video Splitter main window Enter
    Delete Selected Task(s) Delete the selected task(s) Delete
    Delete Selected Fragment Delete the selected fragment(s) Delete
    Change Selected Task(s) Out Folder Change the output folder for all selected files. The program will not change the output filenames
    Disable audio on the selected task(s) Allows to disable audio content of the selected tasks
    Disable video on the selected task(s) Allows to disable video content of the selected tasks
    Start Batch Processing Start batch processing Ctrl + T
    Start Batch Processing For Selected Task(s) Start batch processing for the selected tasks Shift + T
    Preferences Open preferences window Ctrl + P

    Log menu

    Batch menu - log

    Menu Item Description
    Show log Show or hide the log window
    Write log file... Specify the filename all the messages will be written to during the batch manager operation
    Save log as... Save all log messages to a file
    Clear log Erase all messages

    Task queue field:

    Tasks in Batch Manager
    The list enumerates all tasks in the batch queue:

    Column description:

    Menu Item Description
    Task # Task number
    Source file Source filename
    Dest file Destination filename
    Fragments count Number of fragments to be cut
    Full time Total final file length
    Audio stream Audio stream number (*)
    Video stream Video stream number (*)
    Obey samples times Use an alternative synchronization algorithm. By default, it is disabled. If the final file is out of sync after repeated trimming, enabling this option should improve audio/video synchronization. (*)
    Accuracy Shows the selected editing accuracy.

    (*) - These fields can be edited in the batch manager window. Just click the cell with the left mouse button two times (not a double-click) or click the mouse wheel. You can select the necessary item from the drop-down list depicted below.

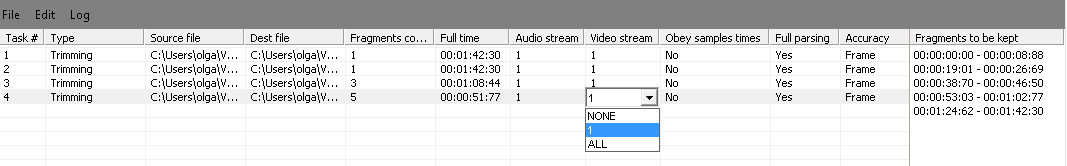

    Changing settings in the task list window

    Change video stream in batch task

    Context menu description:

    Batch context menu

    Menu item Description Shortcut key
    Save Task List As... Save the batch queue to a task list file. Ctrl + S
    Load Task List... Load a batch queue from a task list file
    See Task List syntax in Batch file format
    Ctrl + O
    Start Batch Processing Start batch processing Ctrl + T
    Start Batch Processing For Selected Task(s) Start batch processing for selected task(s) Ctrl + T
    Delete Selected Task(s) Delete the selected task(s) Delete
    Edit Task with Video Splitter Edit the selected task in the main window Enter
    Select All Select all tasks
    Change Selected Task(s) Out Folder Change the output folder for all selected files. The program will not change the output filenames
    Disable audio on selected task(s) Allows to disable audio content of the selected tasks
    Disable video on selected task(s) Allows to disable video content of the selected tasks

    Fragment list

    Fragments list

    All the fragments to be cut out from the selected task are enumerated here.

    Fragment list context menu

    Fragments context menu

    Menu item Description Shortcut key
    Delete Selected Fragment Delete the selected fragment Delete
    Show the Fragment in Video Splitter Show and select the fragment in the Video Splitter main window Enter

    Join Manager window

    Join Manager window

    Join Manager is used to join file with equal parameters like width/height of the frame, video/audio compression etc. Currently supported formats are listed here. The list enumerates all files to be joined together. Only the whole files can be joined for now.

    Columns description:

    Menu Item Description
    # File order
    Source file Source file name
    Full time Full time of current file to be appended to resulting file
    Start time Start time of the current fragment of the current file(*)
    End time End time of the current fragment of the current file(*)
    Audio Audio encoding
    Samples/sec Audio sampling frequency
    Mode Audio mode
    Bitrate Audio bitrate
    Video Video compression
    Width Video frame width
    Height Video frame height
    Type the file type

    (*) - only full files can be joined so start time is the beginning of the file and end time is the duration of the file.

    Menu "File"

    Join Manager menu - File

    Menu item Description Shortcut key
    Add Media File(s) Add files into the list(*) Ins
    Set Output File Name Set the name for the output file
    Save Join List Save current joining task into the file
    Save Join List As Save current joining task into the file to the specified folder
    Load Join List Load current task from the file
    Start Joining Start the joining progress for the current task

    (*) - if you try to add files with different parameters you will be prompted with the appropriate message in the satus bar of the "Join manager".

    Menu "Edit"

    Join Manager menu - Edit

    Menu Item Description Shortcut key
    Move Up Move selected file up in the list Page Up
    Move Down Move selected file down in the list Page Down
    Delete Selected Items Delete all selected items from the list Del
    Clear List Delete all items from the list

    Context menu

    Join Manager context menu

    The context menu commands duplicate menu commands for convenience, and it's "Add" and "Move" commands are applied to chosen file in the list ( the highlighted one ). Others are applied to the list in general.

    Join manager toolbar:

    Join Manager toolbar

    The toolbar also duplicate some commands that allow you to perform joining not opening the main Join Manager window.

    Toolbar Item(left to right) Description
    Start Joining Starts current joining task
    Show / Hide Shows / Hides the Join manager main window
    Add File(s) Adds files into the list
    Load List Loads joining task from file

    Slicing window

    Slicing window allows to fulfill splitting of the file into parts. Fragements length can be specified by duration, by size or by number of equal parts.

    To open the slicing window follow to Tools -> Slicing.. or Edit -> Slicing.. menu and open one or several files you would like to slice.

    The slicing window is depicted on the screenshot below:

    Slicing window

    To start slicing, select the type of spliting: by duration, by size, into equal parts. Enter the value for the selected type of slicing. You can change the order of the files prepared for slicing using appropriate buttons with arrow icons.

    This window also displays the duration and the size of the file or current project.

    Click "Start" to begin the slicing.


    Preferences window

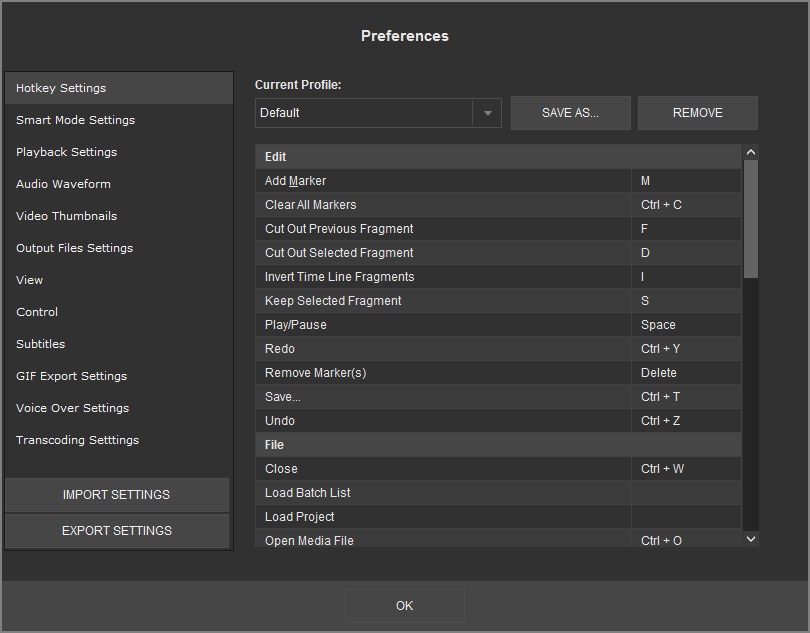

    "Hot Keys Settings" tab

    Preferences window

    Video Splitter allows to choose the defined settings of your desired hot key profile.

    Simply enter your hot key for the chosen operation (right column), click Yes in the appeared information window and then enter the desired name for the new profile, then click on the OK button. The new profile will appear in the Current Profile combobox.

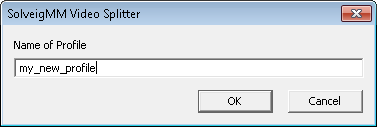

    New profile window

    You can remove your profile by selecting the needed one in the "Current profile" combobox and clicking on the Remove button.


    "Smart Mode settings" tab

    Smart Mode settings

    Smart Mode Settings window allows to choose the decoder and encoder that will be used in re-encoding process of first and last GOP when frame accuracy trimming (Smart Mode) is enabled.
    To select the desired code, choose one or several from the Encoder/decoders list and press the Force selected button.
    The chosen codec will appear in the Preferred codecs list.
    You can choose several codecs from the Encoder/Decoder list. All they will be placed to preferred codec Preferred codecs area.

    Important notice: the decoder or encoder can be forced only for WMV and AVI.

    Video Splitter uses codec that will be suitable for the format of the opened file.
    You can use Move Up and Move Down buttons, to change the priority of the chosen codec.

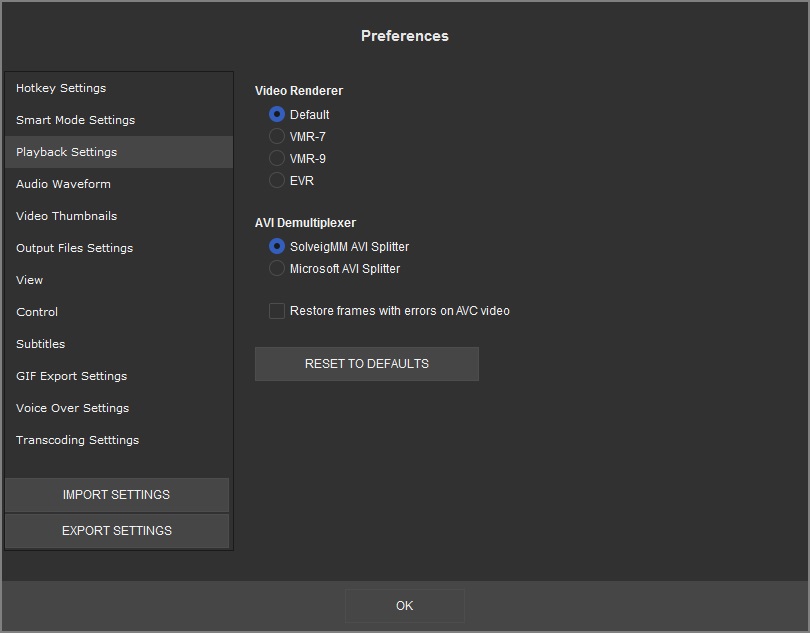

    "Playback Settings" tab

    Playback settings This tab allows to select video renderer.
    If the default video renderer is not worked, then it is possible to select another video renderer.
    EVR video renderer is recommended for users of Windows 7 and later if fps of video is more then 30.

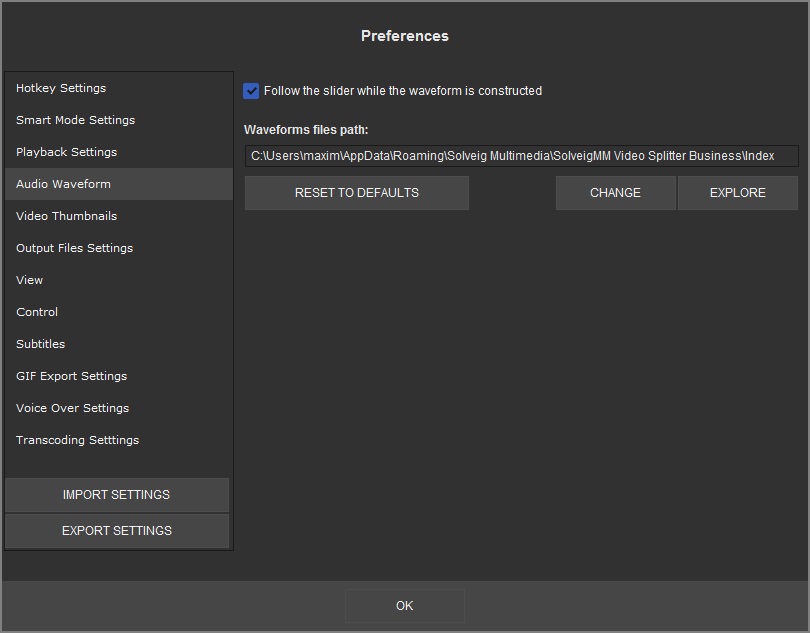

    "Audio Waveform" tab

    Audio Waveform settings

    "Waveforms files path" setting defines waveform data cache path, that is used by Media Editor.

    "Follow the slider while the waveform is constructed" defines the way of waveform building. When the option is enabled the waveform will be built from the selected by the user slider position. Tick this checkbox if you would like the waveform building follow the slider movements.

    If you would like you can change the file path for this file to keep free space on the system drive.


    "Video Thumbnails" tab

    Video Thumbnail settings

    Enable thumbnails HDD cache enables storing thumbnails on your HDD

    "HDD cache path" setting defines waveform data cache path, that is used by Video Splitter.

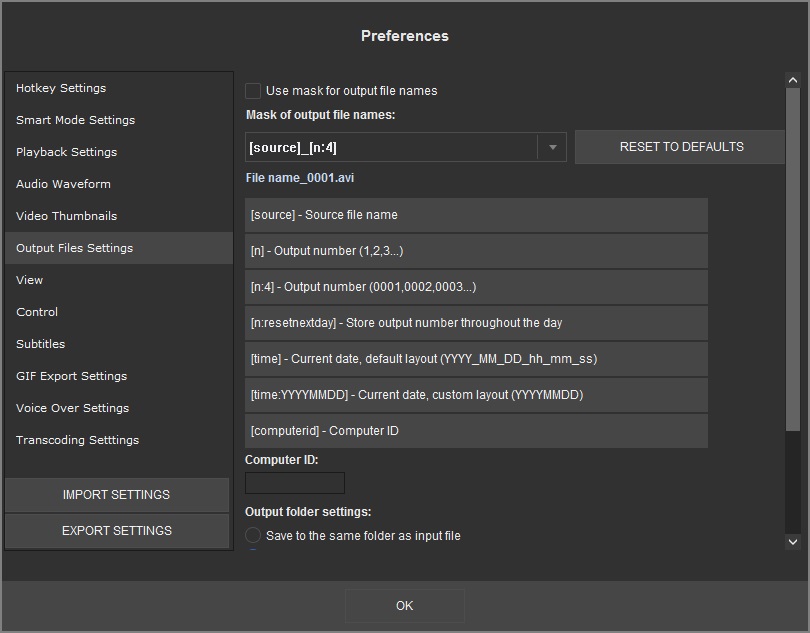

    "Output Files Settings" tab

    Output File settings
    Output files settings tab allows to set mask of the output file and select output folder settings. The files mask is intended to generate the names of the output files, using build-in macroses.
    The mask is the template that consist of macros. It is possible to add predefined macros using special buttons under the "Mask of output file names" line to current cursor position at template edit box.

    Output file mask format:

    [source] uses the name of the source file for the target.

    [n] macros automatically numbers the (one or more) target. Target will automatically be numbered, if parameter is set, even if source name is not used.

    [n:4] macros is the current number of fragment with defined minimum number of characters printed. Zeros are added to the left of the values.

    [time] macros is intended for defining the current date time of the output file name.

    [n:resetnextday] output number will be incremented during a day and reset nte next day.

    [time] output current date and time in the following structure: YYYY_MM_DD_hh_mm_ss.

    [time:YYYMMDD] output current date and time in the user-defined structure. in this example - YYYYMMDD.

    [computerid] outputs the idendificator of the working PC. It can be set in the Computer ID field.

    To add the required macros just click on the button with the macros name and then change it in the Mask of the output files names field if needed.

    You can change the order of this macroses to get the files with names that will be suitable for you.

    To reset the mask to initial view, just click on the Reset to defaults button.

    Below please find examples of mask templates and the output files names.

    For example we have the Video.avi input file and would like to save three fragments from the file. We make this operation on September 25, 2012 at 18:50:30.

    The mask template The output file name
    [n] 1.avi
    2.avi3.avi
    [source]_[n] Video_1.avi
    Video_2.avi
    Video_3.avi
    [source]_[n:2] Video_01.avi
    Video_02.avi
    Video_03.avi
    [source]_[n]_[time] Video_1_2012_09_25_18_50_30.avi
    Video_2_2012_09_25_18_50_30.avi
    Video_3_2012_09_25_18_50_30.avi

    Output folder settings allows to define the output folder.
    It is possible to save to the same folder of the input file, save to the last output folder or save to the specified folder.


    "View" tab

    "View" settings

    Setting Description
    Show input/output information panel Allows to show or close input/output information panel
    Show GPS navigation panel Allows to show or close GPS navigation panel
    Show GPS navigation sensors panel Allows to show or close GPS navigation sensors panel
    Show splash screen Allows to show or close splash screen on the product start
    Show info item in system menu Allows to show info item in system menu
    Show logo on video window background Allows to show or hide logo on video window background
    Show extra view video window on dvr files Allows to show extra view video window of rear camera on dvr files
    Enable compare video mode Allows to show compare video mode

    It is possible to set in this tab the text color for message boxes and text for input/output information panel.


    "Control" tab

    "Control" settings

    Setting Description
    Don't save "Recent files"
    Allows to disable saving of recent files in Recent files history
    Keep project settings (intervals, selected streams) for all files within a session Allows to save project settings (intervals, selected streams) for all files within a session
    Show warning when applying project settings
    Allows to enable or disable showing of warning message when applying project settings
    Automatically save project backups Allows to automatically save project backups
    Show message after saving screenshot
    Allows to show the message after saving of screenshot
    Don't duplicate markers at the same position Disallows duplicating markers at the same position
    Close application after trimming
    Allows to close automatically the application after trimming
    Ask for output file name if "Trim" pushed If chosen, the application asks destination file name on trimming
    Navigate to interlaced fields on AVC video Allows to navigate to interlaced fields on AVC video
    Disable frame alignment Allows to disable frame alignment. This feature is required for the accurate editing of audio. With this feature the selected position on the timeline is aligned accurately according the selected time position. Otherwise the selected position is aligned according the time position of the frame beginning that leads to changing from constant frame rate to variable for video as a side effect.
    Padding on MPEG TS files Allows to make padding on MPEG TS files
    Keep MPEG TS PIDs Keeps elementary transport stream PIDs in transport stream format
    Saving MPEG2 closed captions data on re-encoded frames Allows saving closed captions data in VES stream on re-encoded frames
    Enable single thread mode for MPEG2 encoder enables this mode in Elecard encoder. If it is disabled it generates at different runs on the same raw data different encoded stream)
    Index MPEG audio files Allows to index MPEG audio files
    Index MPEG video files Allows to index MPEG video files
    RTP hint tracks on MP4 files Option is used for the preservation of RTP hint track information used by the streaming server(eg Darwing) in the broadcasting. Without this data for example Darwing streaming server will not work with the output file.

    It is possible to set in this tab the text color for message boxes and text for input/output information panel.


    "Subtitles" tab

    The "Subtitles" tab allows to adjust settings for subtitles placement and font in preview.

    It is possible to select new position of subtitles in the resulted file by clicking the "Override subtitles placement" and by entering new values of X, Y positions.

    To change the subtitles font, please select "Override subtitles font" and click the "Choose font" button.

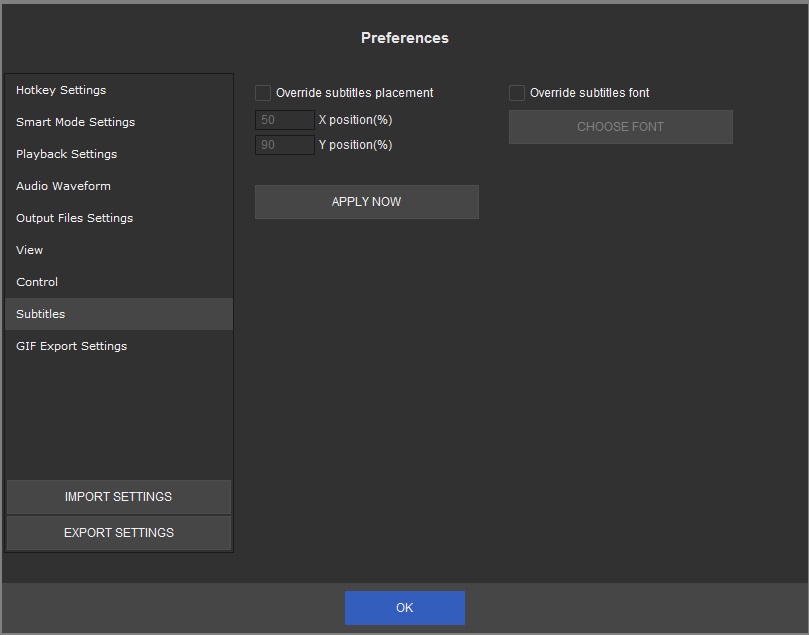

    "Subtitles" settings


    "GIF Export Settings" tab

    "GIF Export Settings" tab allow to make special settings for GIFs that Video Splitter could create.
    You could set frames count control:

    • Save equidistant frames:
      • Frames count
      • Frame duration (1/100s)
    • Overide fps - set frames per second value
    • Keep original fps

    Gif settings


    © 2005-2023 Solveig Multimedia. All rights reserved.

    Back to top Generated by DocFX
