How to Edit MP4 file
box
Video Splitter Home Edition 6.1

Easy to use, lossless video editor for AVC/H264, MP4, MOV, WEBM, FLV, MKV, MPEG-2, WMV, ASF, AVI frame-accurate trimming and joining.

File info: 51.12 Mb, 2017 Jul 19

download Buy now
SolveigMM Video Splitter is intended for easily and losslessly media files editing of varios file formats. In this article we will describe how you can edit your MP4 file with this video editor.

Basic Terms
Understanding of some basic terms used in this guide will help you to start using SolveigMM Video Splitter in most comfortable way.
Marker is a constituent part of a fragment consisted of two markers: start and end. Markers can be added or deleted. Such operations as deleting and positioning are applied to the selected markers only.
1
Marker is set to a current cursor position.
2
The selected marker is highlighted with yellow color.

Markers can be added or deleted. Such operations as deleting and positioning are applied to the selected markers only.

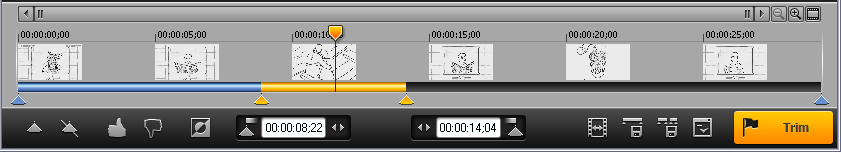

Fragment is a part of video (or audio) file limited by two markers to be removed or kept in a final movie, e.g. commercial block you want to cut off. Selected fragments are marked with orange color. Fragments marked as 'cut off' are colored with white color.
Examples of fragments are provided in table below:

Color of Fragment Description
4
This fragment was set to be deleted. It will not be presented in final movie
6
This fragment was set to be kept. It will be presented in final movie
3
This fragment was set to be deleted. It will not be presented in final movie. Yellow highlight means you can edit it (delete, set it to be kept, etc.)
5
This fragment was set to be kept. It will be presented in final movie. Yellow highlight means you can edit it (delete, set it to be cut off, etc.)

Control Panel contains main tools for file processing.

34

Description of window elements is provided in table below.

Window Element Description Shortcut Key
35
Button "Add Marker": Adds a new marker to current slider cursor position.
M
36
Button "Remove Marker(s)": Removes a current marker or fragment.
Delete
37
Button "Keep On Selected Fragment": Sets a fragment type.
S
38
Button "Cut Off Selected Fragment": Sets a fragment type.
D
39
Button "Invert": Inverts time line fragments.
I
42
Button "Size":  Calculate result file size (is available for AVI, MP3).
Ctrl+F
46
Button "Trim": Starts trimming or Batch Processing (if batch queue has any task).
Ctrl+T
40
Edit box of a left marker cursor time position. You can edit this value by manually.
41
Edit box of a right marker cursor time position. You can edit this value by manually.
48
Button "Zoom In": Increases a slider timeline resolution for more comfortable editing neighbor markers (*).
NumPad+
47
Button "Zoom Out": Decreases a slider timeline resolution (*).
NumPad-
49
50
Story board Off/On: turn off/on the story board

43
Save current fragment as: saves the selected fragment

44
Save All fragments as: saves all selected fragment on the timeline

(*) - To view timeline areas after Zoom In you can use a scroll bar (below a timeline slider) and "Alt + Left arrow" and "Alt + Right Arrow" hot keys.

Assume that we would like to cut off two fragments from the initial file (e.g. to remove ads) in one pass and in frame accurate mode.

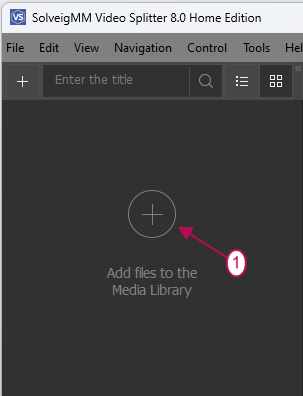

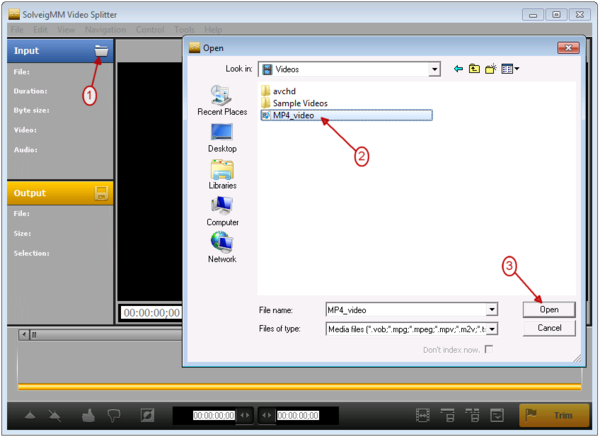

  1. At first we need to open our original file in Video Splitter. There are two ways to do this: you can click on the "Input" button of the Video Splitter window or you can go to File menu and choose Open Media File...
  2. In the opened standard dialog window select file for editing.
  3. Then click the "Open" button.
1
Figure 1
       Now you can choose the fragments to be saved and deleted in the final movie. At first you should mark this fragments using Video Splitter controls, menu or context meny commands.

      4. To find the beginning of the first fragment use Video slider or Ctrl + right and Ctrl + left hot keys.

For more comfortable editing you can use the Video Splitter advanced options - visial timeline that allows to find easily the necessary frame.

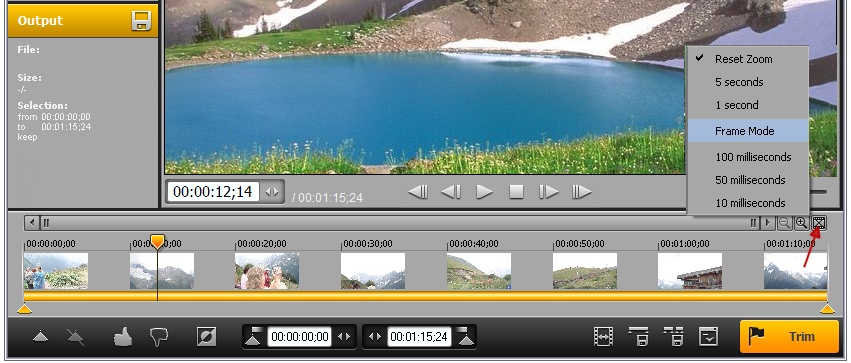

Move your cursor "Zoom In" button and choose "Frame mode" or simply click on the "Zoom In" button to zoom in the timeline. The visial timeline will be enlarged and so you can find easily the needed fragment.

t1
Figure 2

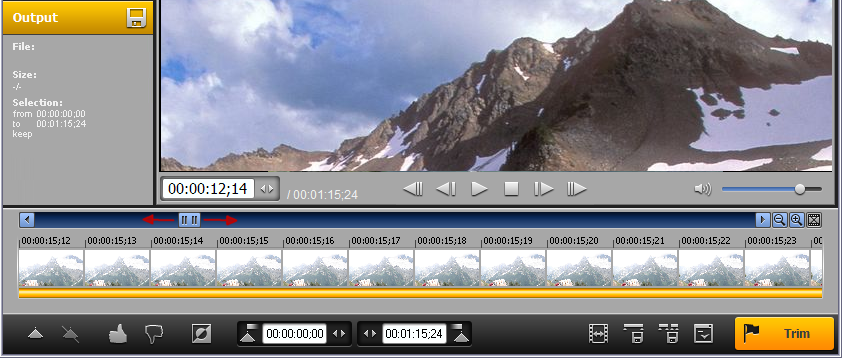

Move the timeline navigation bar right or left to find the frame of your movie beginning. To change the scale you can also left mouse click on the end or beginning of this bar and holding the mouse button move the beginning or end right or left.

t2
Figure 3

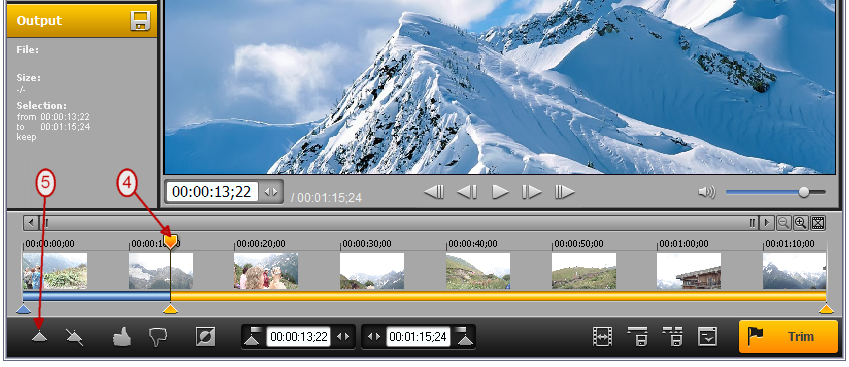

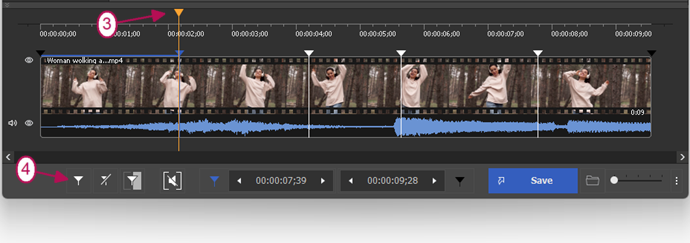

5. Then add the marker by clicking the Add marker button on the splitting controls bar. Also you can add the marker by selecting the Add New Marker command of the contextual menu or Add Marker command from the Edit menu, or using the [M] hot key.

Then you can add the marker at the end of your first fragment. Markers divide movie into several fragments (see Basic Terms). In our example we divide our movie into four fragments by adding markers in the required places.

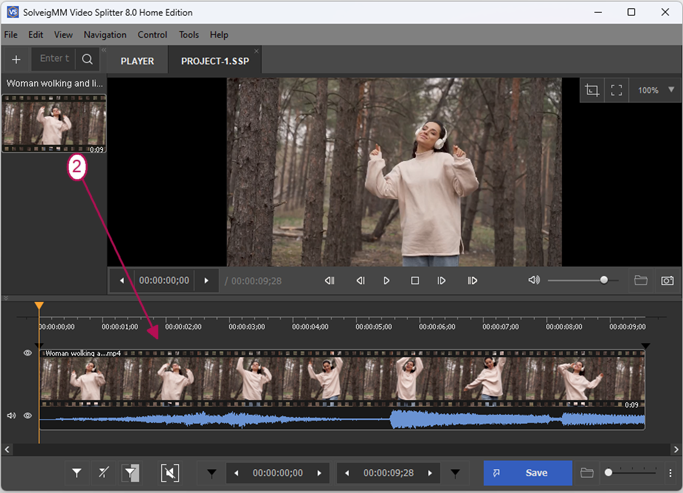

    2
    Figure 4

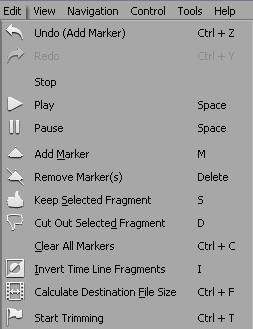

    Note: To cancel the latest action use the Undo command of the Edit menu. The command name also contains the name of the last action, e.g. Undo (Add Marker), see Figure 5. The Redo command of the Edit menu is used to perform the cancelled action. This command is inactive if no actions were undone.

    11
    Figure 5
    fig6
    Figure 6

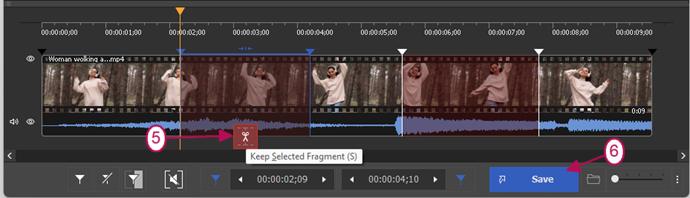

6. Now you should select the fragment you want to cut off from the final movie by clicking on it your left mouse button.

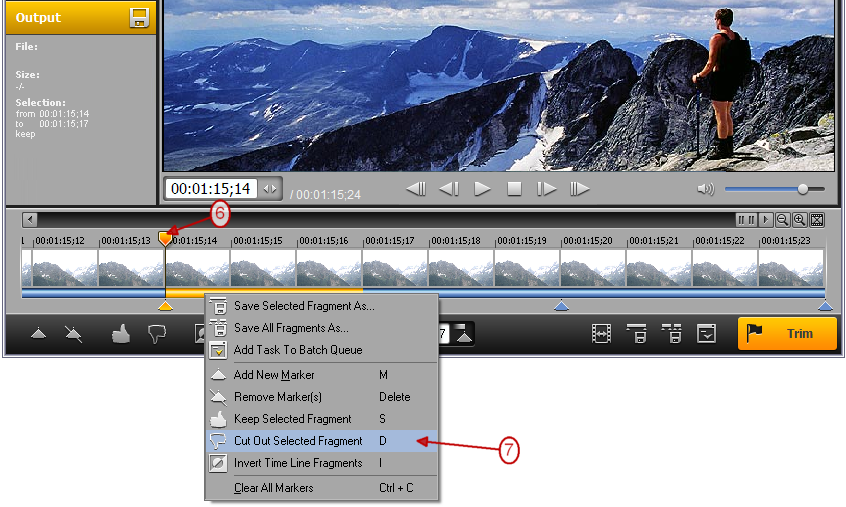

7. Click the right mouse button on the selected fragemnt and choose "Cut out selected fragment command" to mark the selected fragment as ''cut off''.  This selected fragment that will be deleted will be marked with grey color (see Basic Terms).

    4
    Figure 7
      8. By the same way select other fragments you want to cut off from the movie. In our example we marked the last fragment as ''cut off'' as described in 7.

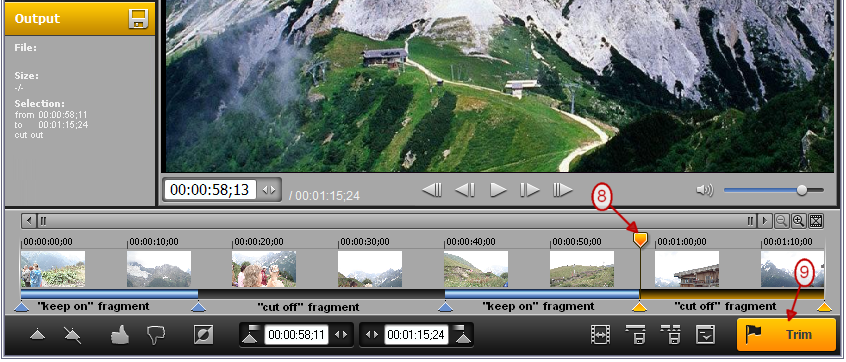

      9. Click on the Trim button to start the file processing.

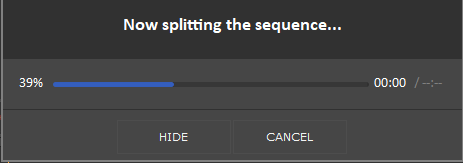

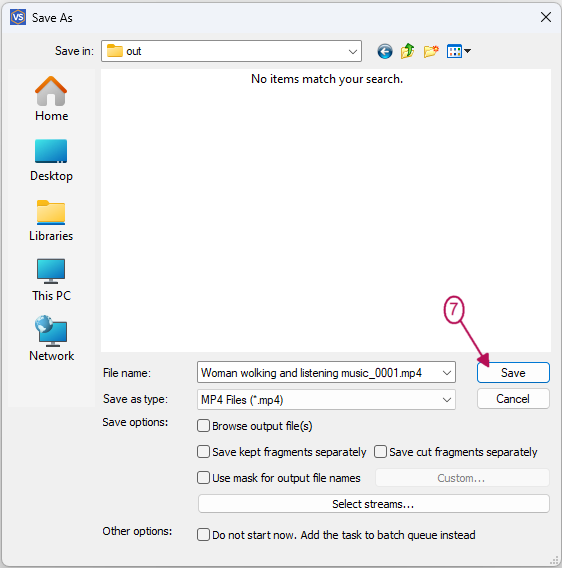

      10. Choose the directory for file and enter the new file name in the opened standart Save As window. Click the Save button. In Video Splitter window you will see the current progress of file processing.

    Finally, you will get the file without two fragments that were selected as "cut off".

    We wish you success in your video editing projects!
