How to trim MP4 file on Android

box
TriMP4 for Android 1.1

File info: 5.98 Mb, 2015 Dec 24

download
This guideline shows you how to easily edit your MP4 video file on any device working under Android operating system. If you would like to save some fragments from the MP4 video file and remove others, TriMP4, the newest SolveigMM product, will do it for you in a couple of simple steps. Please see them below.

Basic Terms

Understanding of some basic terms used in this guide will help you to start using TriMP4 in the most comfortable way.

Marker is a constituent part of a fragment, wich itself consists of two markers: start and end.

a
Marker is set to a specified position in the time box
b
The selected marker is highlighted with blue color

Fragment is a part of video file limited by two markers to be removed or kept in a final movie. The selected fragment is marked with blue color. Fragments marked as 'cut off' are not selected and colored with grey color.
Examples of fragments are provided in table below:

Color of FragmentDescription

not selected fragment1

not selected fragment21

    This fragment was set to be deleted. It will not be presented in final movie
selected fragment     This fragment was set to be kept. It will be presented in final movie

The Control Panel contains the main tools for file processing.

control panel



Description of the window elements is provided in the table below.

Window ElementDescription

open2

open

Open file button
left
Move the selected marker to left
right
Move the selected marker to right
play1

pause1
Play/pause buttons
stop
Stop playback button
trim
"Trim" button: start editing process
total
Shows total duration of selected fragment
time box
Shows time position of the marker
info
Information panel of input file: shows input file duration, its size, resolution and frame rate
preferences

menu

Opens the menu with additional commands.



Load project: allows loading the previously saved project to TriMP4



Save project: allows saving the project to a file



Allows reporting about possible improvements to developers of Solveig Multimedia



Opens additional settings window

preview1 Opens preview of output file in TriMP4
preview with Allows selecting preview of output file with any program on the device
share with Allows sharing the output file with any application
input output Shows input/output file size information
delete input Allows deletion of input file



1. Download TriMP4 from Google Play and install it.

2. Click the icon of TriMP4 on your device to open the application.

1

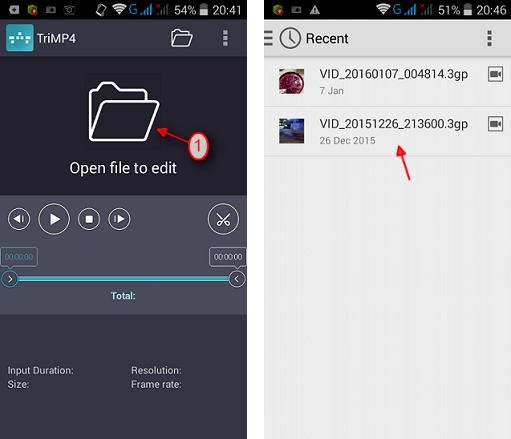

3. You will see the following window. Press the "Open file to edit" icon with the folder image to select the MP4 file you would like to edit and select the file for trimming.

2

222

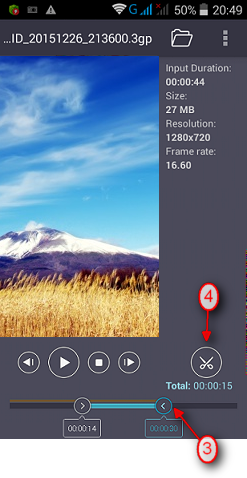

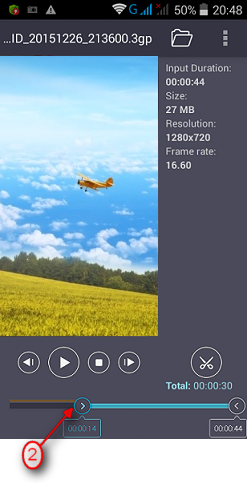

4. Press the icon of the left marker and move it to the position of the fragment beginning.

3

Then move the right marker the same way to the end time position of the fragment.

To find the necessary fragment you can select the marker then press press right/left arrow buttons (r-l2) to move the marker right or left.

You can also playback the file and move the marker to this position.

When the fragment will be selected press the icon with scissors.

4

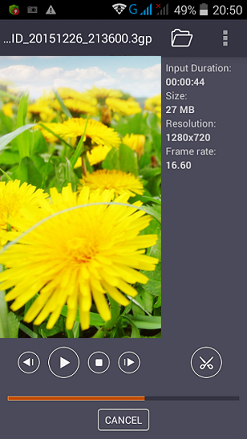

The trimming progress will be started.


5

6. After editing is complete you can Preview the output file with TriMP4, select another application for preview, share it to your friends with any application on your device, see information about output/input file size and delete the input file if necessary.

To edit another file press the "Complete" upper menu. To playback output file in TriMP4 select "Preview".

6

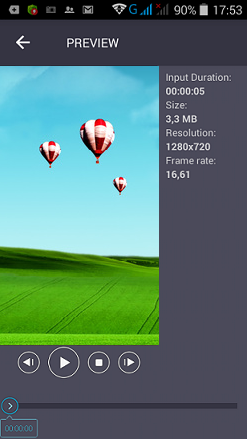

The output file will be opened in TriMP4.

7

That's all! Good luck with your editing projects!
